U-shaped gutters

- Easy to install
- High concrete quality
- Absorption and drainage of surface water
- Concrete cover plates perforated or with grooves
- Also available with reinforced galvanized metal grids

Back to overview Contact us

Technical file
Characteristics/finish
related products

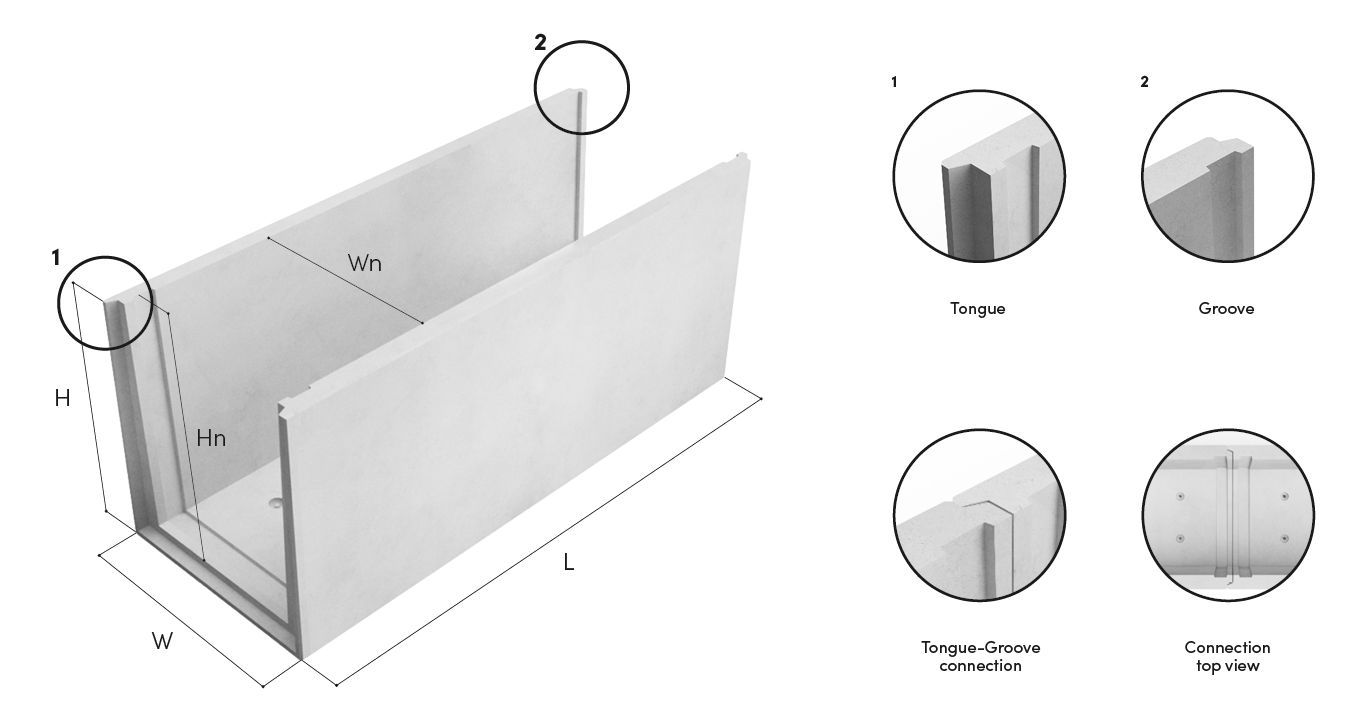

U-shaped gutters

ARTICLE	L(cm)	W(cm)	Wn(cm)	H(cm)	Hn(cm)	WEIGHT (kg)	LIFTING SYSTEM	CONNECTION
10318	100	30	19	18	14	63	/	Vlak-Vlak
10340	300	40	28	30	23	425	2x1,4T (FRIMEDA)	Tongue-Groove
10350	300	50	34	40	31	750	2x1,4T (FRIMEDA)	Tongue-Groove
10390	300	90	73	69	61,5	1350	4x1,4T (FRIMEDA)	Tongue-Groove
10320/70	300	120	96	70	60	1960	4x2,5T (DEHA)	Tongue-Groove
10320/130	300	120	100	130	120	2896	4x2,5T (DEHA)	Tongue-Groove

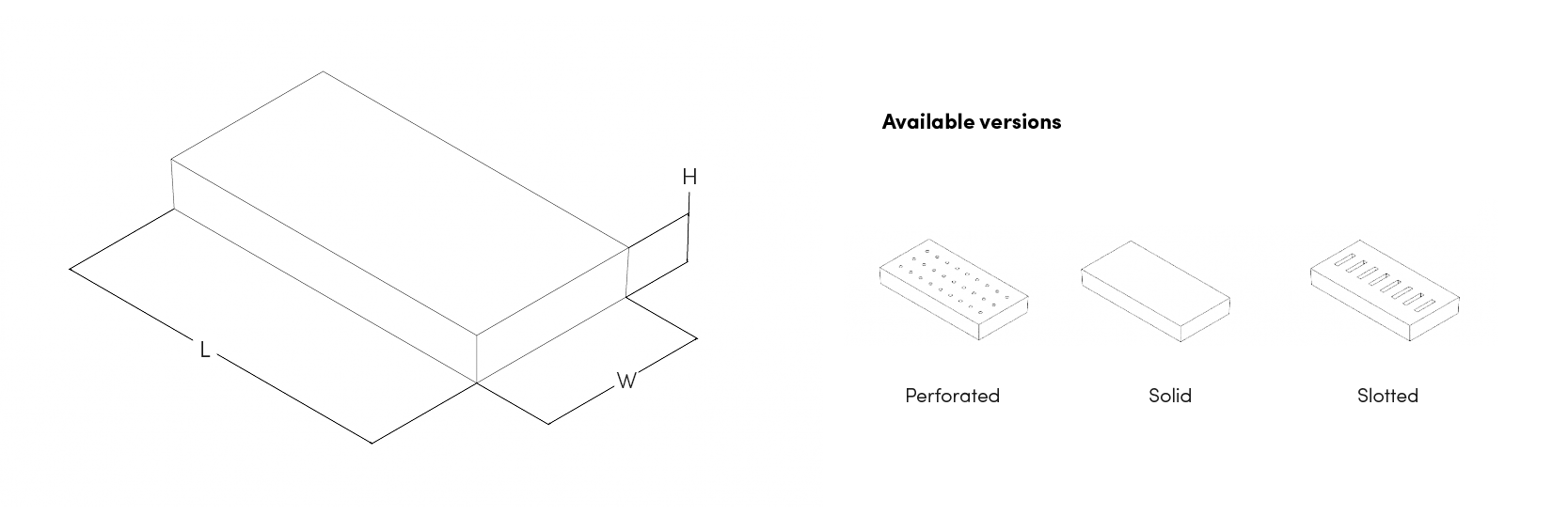

COVER PLATES

ARTICLE	L (cm)	W (cm)	H (cm)	WEIGHT (kg)	AXLE LOAD	FINISH
11130	100	30	5	37	4 T**	full

11140	100	40	9	80	5 T**	perforated
11940	100	40	9	80	5 T**	with slots
11161	100	40	14	140	15 T***	full
11141	100	40	14	130	15 T***	perforated
11941	100	40	14	130	15 T***	with slots

11150	100	50	9	85	5 T**	perforated
11950	100	50	9	90	5 T**	with slots
11162	100	50	14	175	15 T***	full
11151	100	50	14	160	15 T***	perforated
11951	100	50	14	136	15 T***	with slots

11700	100	90	14	308	15 T***	full
11900	100	90	14	270	15 T***	with slots
11090	100	90	14	270	15 T***	perforated

11320	100	90	14	400	15 T***	full
11321	100	90	14	325	15 T***	with slots

Galvanized grid only available in finish with grooves
** Wheel print 30 x 40 cm with wheel base 180 cm
*** Wheel print 40 x 40 cm with wheel base 200 cm

U-shaped gutter end piece

ARTICLE	W (cm)	H (cm)	T (cm)	WEIGHT (kg)
10390-E	73/69	61,5	9	150
10320/70-E	100	62	10	145
10320/130-E	104	122	10	300

Our U-shaped gutters are produced in accordance with the specifications/characteristics mentioned below:

ARTICLE	CONCRETE TYPE	CONCRETE QUALITY	CONCRETE COVER
10318	Earth dry	C45/55	20 mm
10340	Traditional	C50/60	25 mm
10350	Traditional	C50/60	25mm
10390	Self-compacting	C60/67	35 mm
10320/70	Self-compacting	C60/67	35 mm
10320/130	Self-compacting	C60/67	35 mm

Our concrete cover plates are produced in accordance with the specifications/characteristics mentioned below:

CONCRETE TYPE	CONCRETE QUALITY	CONCRETE COVER	FINISH SURFACE
Self-compacting	C45/55	25 mm	Regrinded with coarse grain of sand

Back to overview Contact us

iF Design Award and Red Dot Design Award

U-shaped gutters

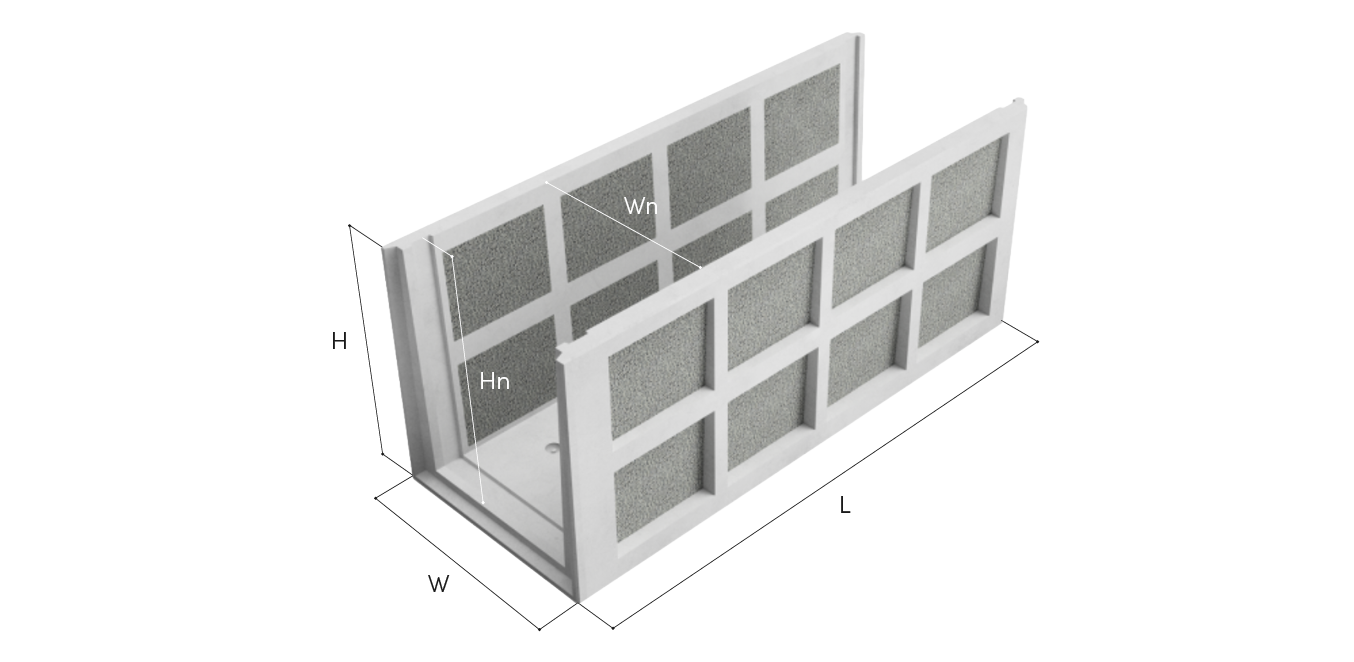

Infiltration gutters
